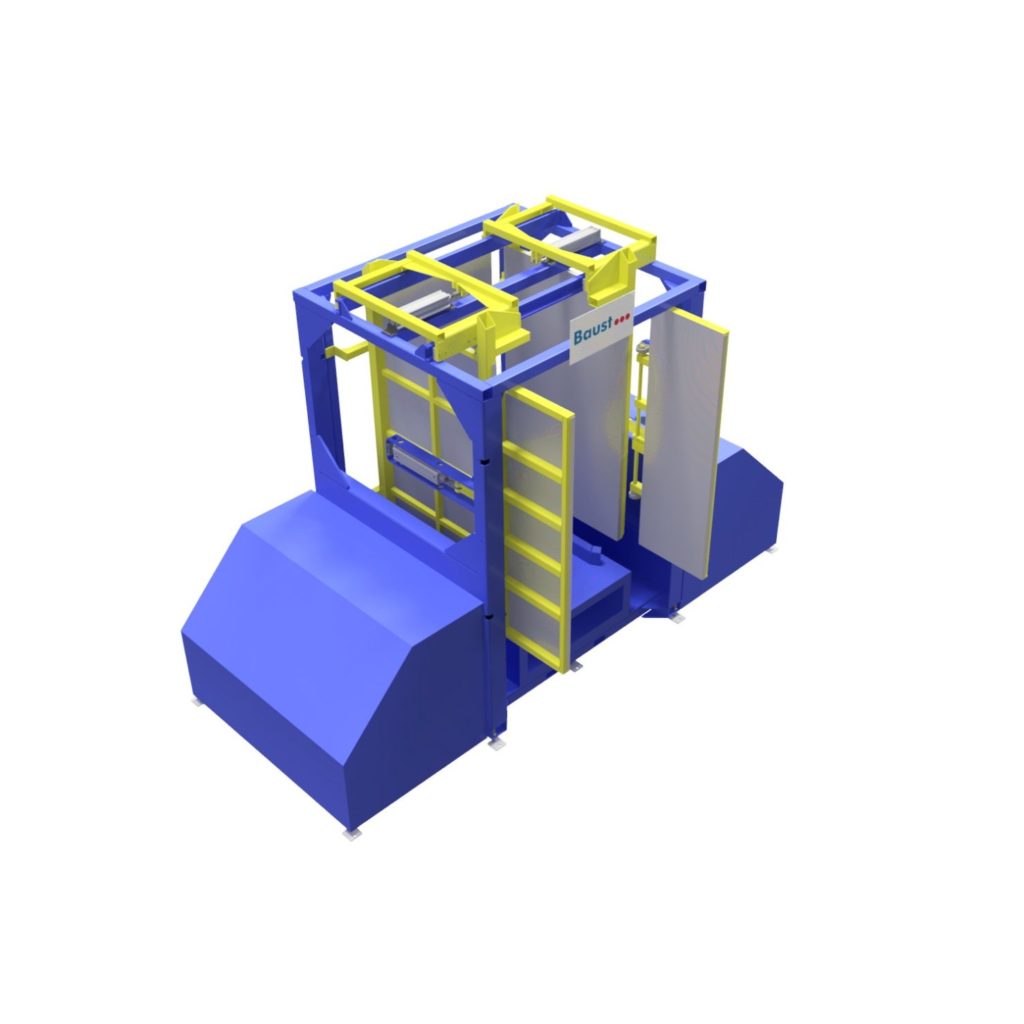

Centering station AZ 1000

Specifications

• performance: 30 – 50 cycles/h
• control mode: dead-man´s handle (hold-to-run-control)
• loading and unloading: electrical pallet truck or forklift
• clamping walls: electrically driven
• power supply: 4 kVA – 16A 230/400 V
• dimensions (L x W x H in mm): 4400 x 4330 x 3500

Pallet loading

• total weight up to 1000 kg
• standard pallet (W x L in mm): 800 x 1200
• height incl. pallet: 2000 mm
• goods: e.g. cardboard boxes, boxes, Big-Bags, bottles or pallet stacks
• overhang tolerance for each side: +- 50 mm

Options

• other pallet widths
• height of goods > 2000 mm
• load > 1000 kg

The centering system Stand-Alone

The centering station AZ 1000 is the basic model and aligns the load safely and efficiently from three sides. The dead-end layout
makes the stand-alone system ideal for niche locations.

Centering of loads stacked on pallets or entire stacks of empty pallets is always necessary if irregularities in the layer pattern or packing scheme have occurred during palletizing or transport. A low tolerance in stacking and outer contours is an important prerequisite for a safe and trouble-free process, especially in automated further processing and storage. With the AZ 1000 centering station, the load is aligned both lengthwise and crosswise. The pallet is set down into the machine from the front by forklift truck. The two side walls and the doors close and compress the load from three sides. The pallet can then be removed again by forklift.

Up to 50 cycles in one hour are possible. A safety fence with access control ensures the required safety.
