Pallet changer PW 800

The flexible tilting method

With the PW 800 from Baust, the pallet change is done by a backward tilting movement of 100 to 135°. The pallet changer PW 800 with side walls and pallet clamp is ideal for unsecured loads such as, e.g. drums, sacks or big-bags. A particular feature of this pallet changer using the tilting method is the ergonomic operation on floor level both for the loaded and empty pallets.

  • Flexible tilting method with side walls and pallet clamp

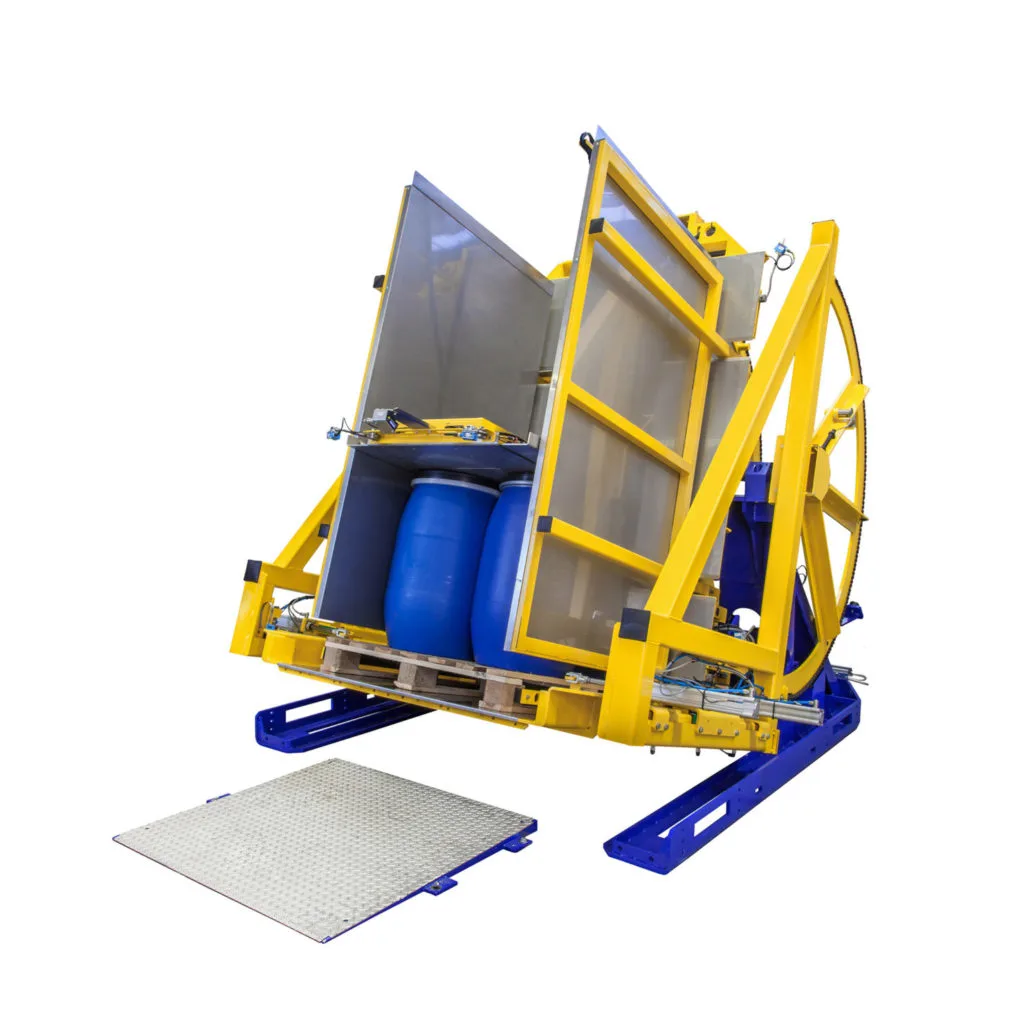

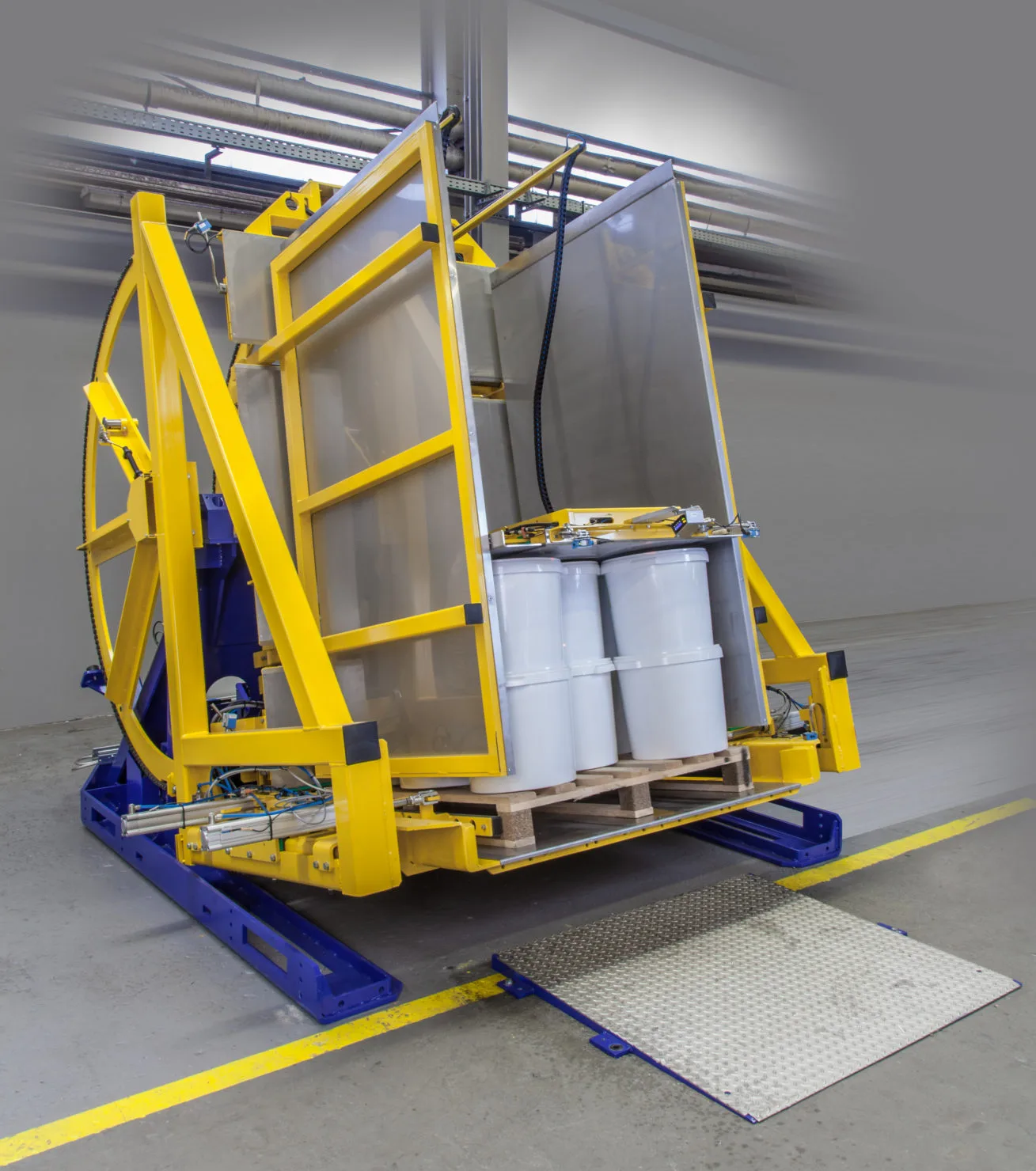

  • For drums and other unsecured goods
  • No hydraulic: 100% free of leakages
  • Reliable even with bad pallet quality & many pallet dimensions
  • Loading on floor level for hand pallet truck
  • Alignment of over and under palletized goods is possible

Data sheet

Layout

Make an inquiry

Specifications
  • performance: 10 – 20 changes/h
  • dimensions (L x W x H in mm): 5200x3500x3390
  • tilting/top wall: electrically driven
  • pallet clamp/side walls: electrically driven
  • feeding & discharging: pallet truck, forklift etc.
  • control mode: automatic
  • power supply: 4 kVA – 16A 230/400 V
  • machine weight: approx. 3900 kg
Pallet loading
  • total weight up to 1500 kg
  • pallet dimensions (W x L in mm): 800 – 1000 x 1200
  • max. height incl. pallet: 2000 mm

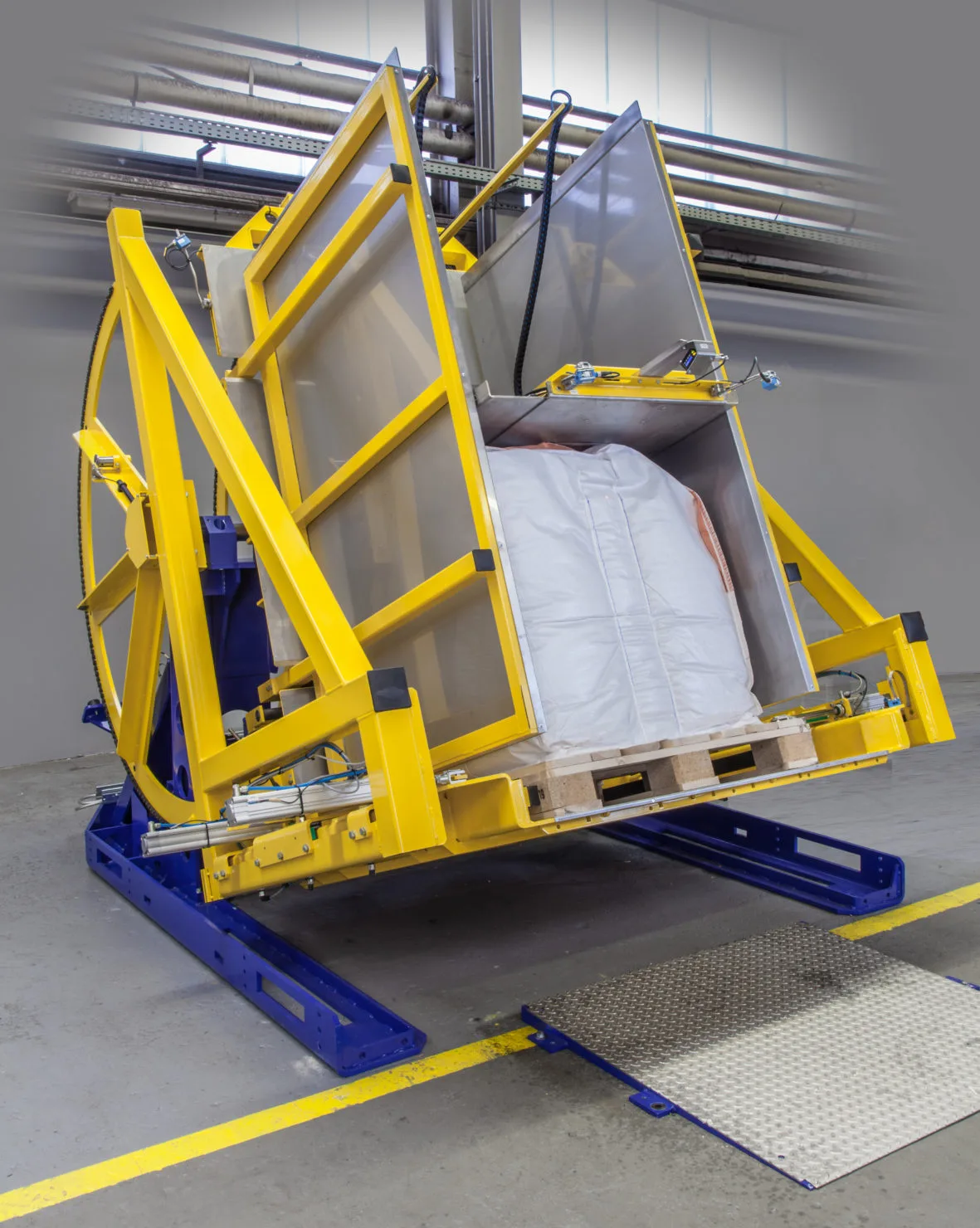

  • goods: e.g. drums, sacks, big-bags
  • overhang allowed
Options
  • other pallet dimensions
  • goods height > 2000 mm
  • different centering devices
  • loading table with lifting function
  • preparation for later conveying line integration



Pallet changing with the PW 800

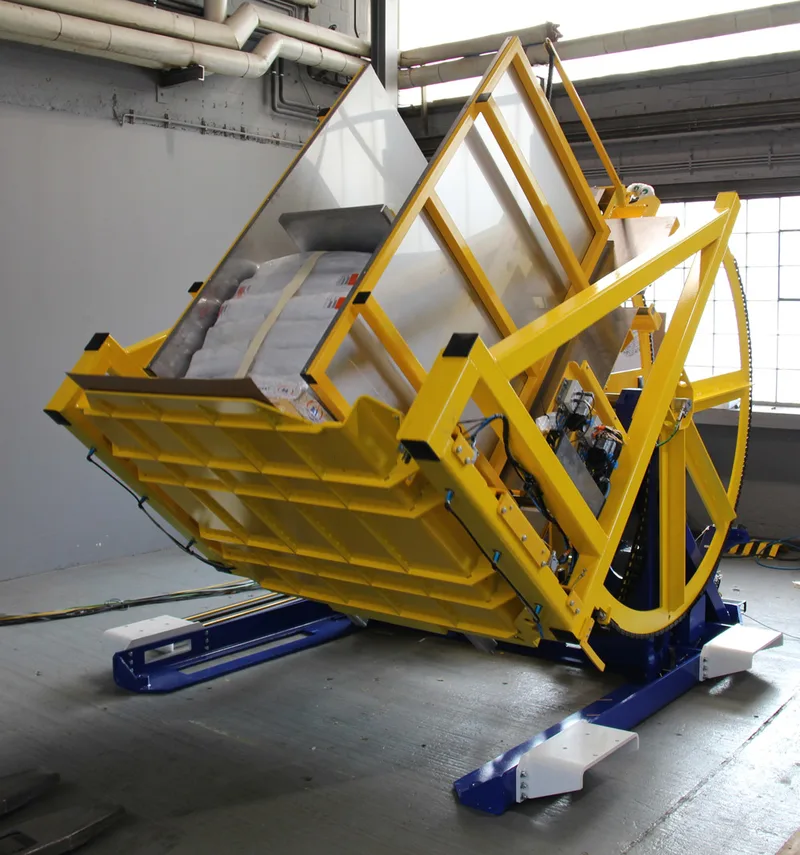

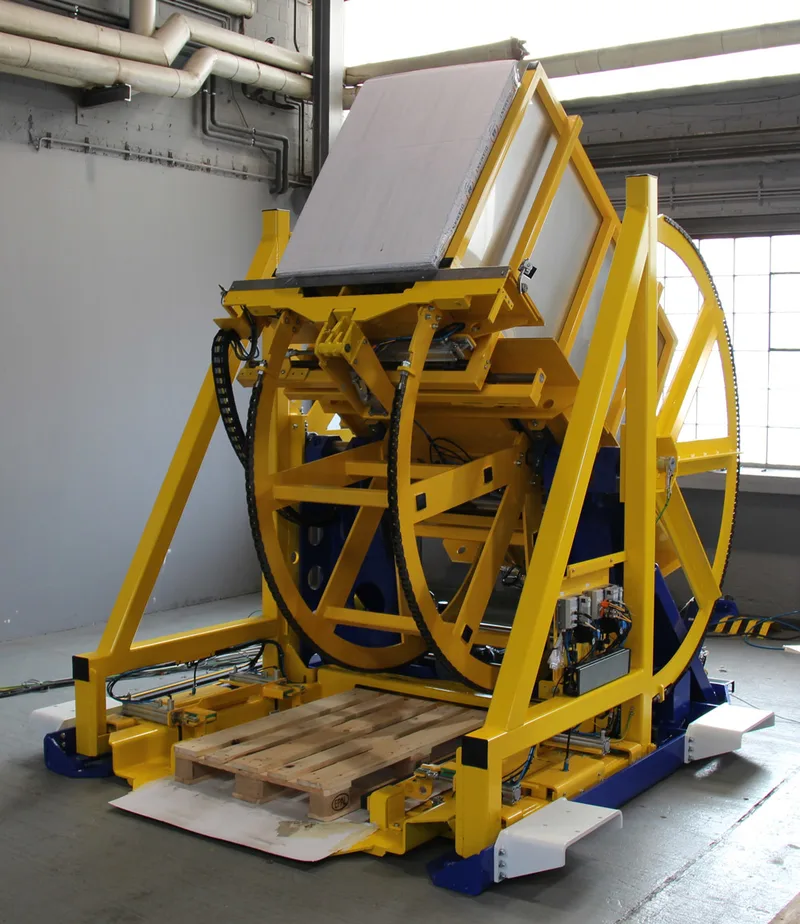

The PW 800 from Baust is used, if many different sized pallets or pallets with poor quality have to be handled ergonomically near to the floor level. The goods are clamped from the top and two sides and then tilted backward by 100 to 135°. The source pallet moves back automatically and can be removed with a pallet truck and exchanged by the new pallet. The new pallet is raised up again and then tilted back with the goods. This means that lifting and moving the pallets by hand is omitted, a fact which makes the PW 800 very user friendly. Operation of the PW 800 is automatic with the necessary safety technology. Pallet changing with the tilting method could not be more comfortable.

We recommend the pallet changer PW 800 for 10 to 20 changes per hour.
