Pallet changer PW 800 Inline

The inline basic system for tilting

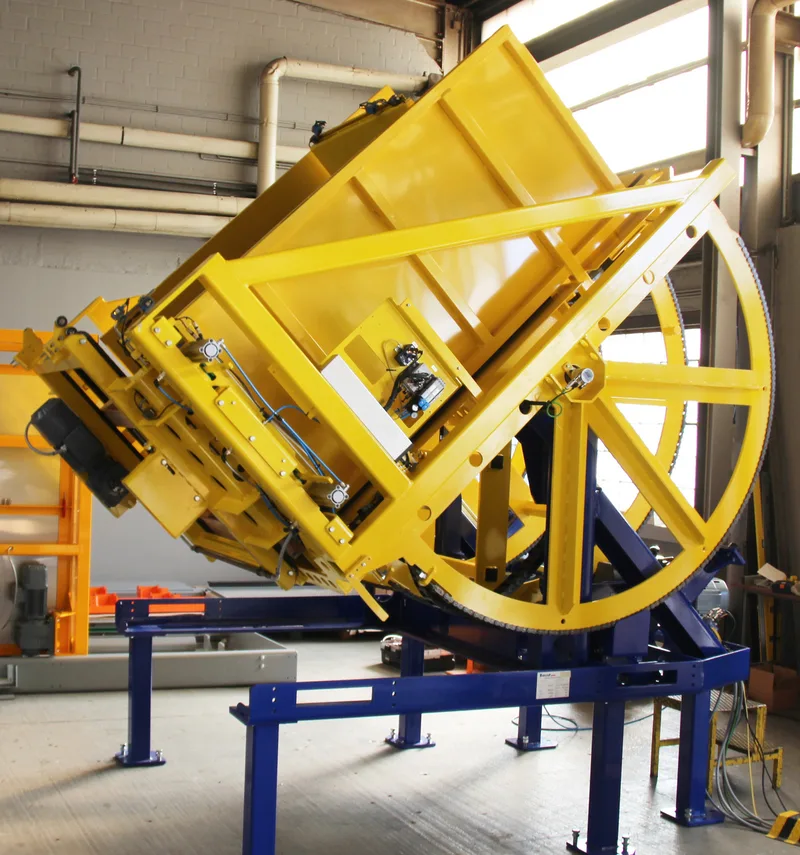

The pallet changer PW 800 Inline offers the fully automatic tilting method as a basic solution. The integration in further conveyor technology with additional components such as pallet magazines or packaging machines is possible quite easily. The conveyor integrated into the changer can be fitted either with a roller conveyor for lengthwise transport or a chain conveyor for crosswise transport.

  • Tilting method integrated in the conveyor line

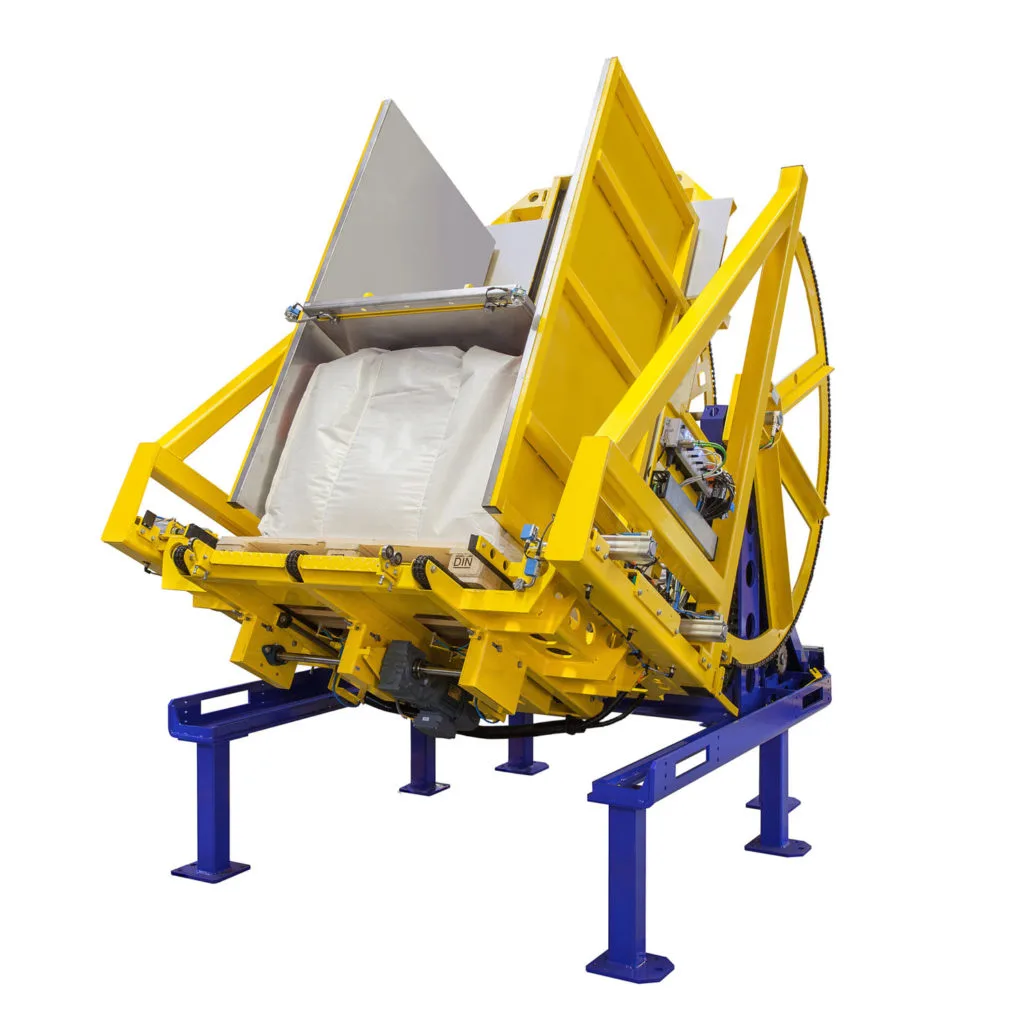

  • Extended tilting angle up to 135° ideal for bags and Big-Bags
  • No hydraulic: 100% free of leakages
  • Reliable even with bad pallet quality & many pallet dimensions –
  • Lengthwise or crosswise feeding and discharging
  • Alignment of over and underpalletized goods is possible

Data sheet

Layout

Make an inquiry

Specifications
  • performance: 35 – 40 changes/h
  • dimensions (L x W x H in mm): 3225x2280x3830
  • tilting/top wall: electrically driven
  • pallet clamp/side walls: electrically driven
  • feeding & discharging: forklift/ conveyor system
  • control mode: automatic
  • power supply: 4 kVA – 16A 230/400 V
  • machine weight: approx. 3900 kg
Pallet loading
  • total weight up to 1500 kg
  • pallet dimensions: 800-1000×1200 mm
  • max. height incl. pallet: 2000 mm
  • goods: e.g. drums, bagged goods, big-bags
  • overhang allowed
Options
  • other pallet dimensions
  • goods height > 2000 mm
  • different centering devices
  • loading table with lifting function



Pallet changing with the PW 800 Inline

The PW 800 Inline owns all functions of the stand-alone pallet changer PW 800. Only the loading and unloading is different due to the following conveyor technology. The loaded source pallet is conveyed into the changer and gripped by the pallet clamp. The walls securely enclose the goods from the top and both sides. A backwards tilting procedure by 100 to 135° follows and only the empty pallet is tilted back to conveyor level and removed. The new pallet comes in and is moved up to the goods. At the end, the new loaded pallet is tilted back onto the conveyors. This is how pallet change using the tilting method looks like with top performance.

We recommend the pallet changer PW 800 Inline for 30 to 40 changes per hour.

Request a non-binding offer now
